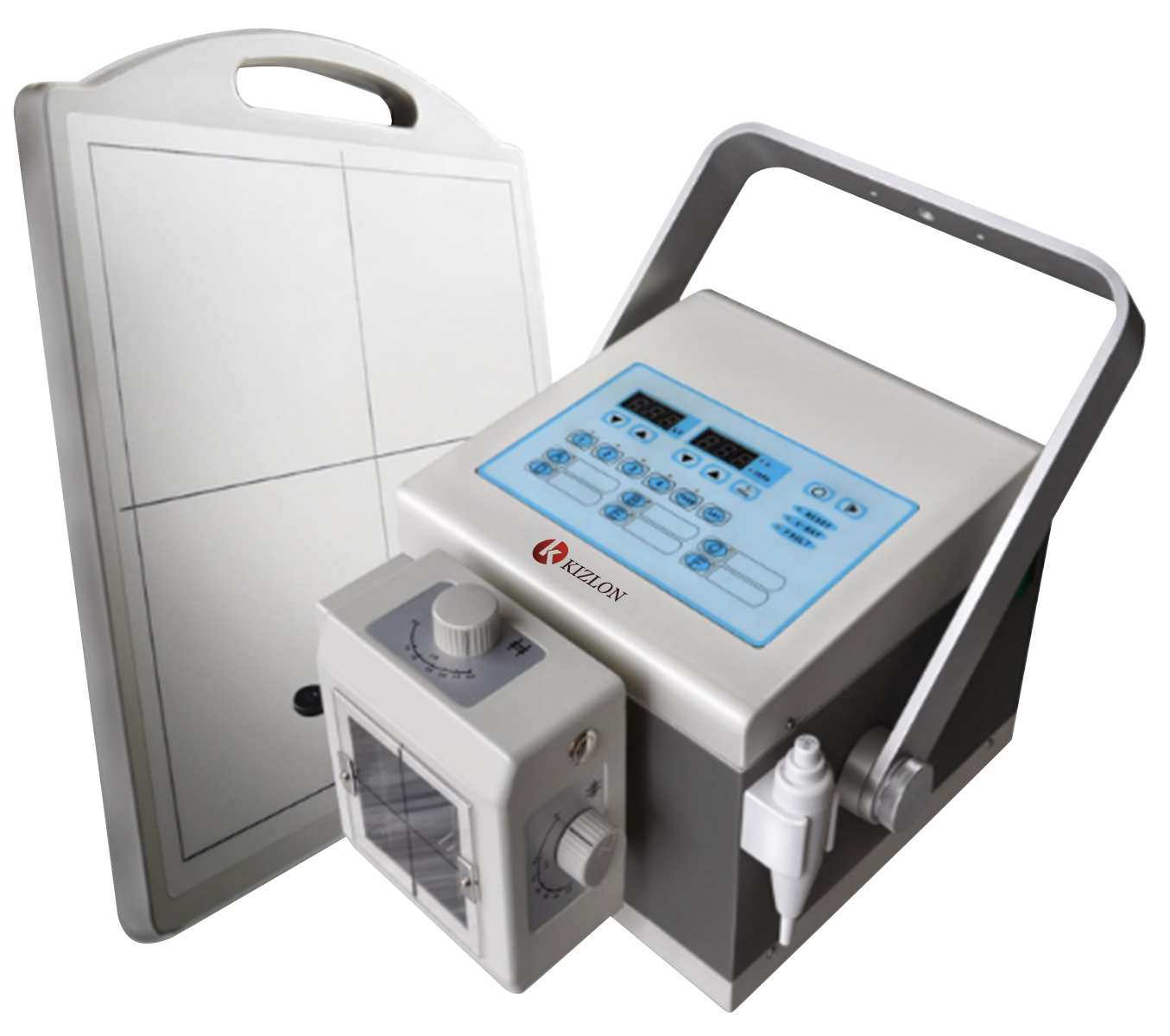

Veterinary X-ray Machine KVX-A100 is a portable, ultra-compact high frequency digital radiography system specifically designed for equine, bovine, exotic and multi-species x-ray imaging practices. X-ray assembly features accurate simulation-control, precise tube-voltage and tube-current with various pre-defined anatomical x-ray positioning con suitable for easy orientation and imaging.
| Max Output Power | 4 kW |
| Nominal Power | 100 kV, 40mA, 0.1 s, 4 kW |
| Input Power | 220 V ± 2 V (AC); 50/60 Hz |
| Tube Focus-spot | 0.6 / 1.5 mm |
| Digital Detectors | Limit Resolution : 3.6 LP/mm Pixel Area : 427 × 356 mm A/D conversion : 14 bit |
| Power Capacity | ≥ 5 kVA |
| Frequency | ≥ 40 kHz |
| Tube voltage (kV Range) | 40 kV ─ 110 kV |
| Tube current (mA Range) | 36 mA ─ 70 mA |
| Radiographic density (mAs Range) | 1 mAs ─ 200 mAs |
| Time Range | 0.04 s ─ 3.2 s |
| Inner Resistance | ≤ 0.50 |
| Anode Heat Capacity | 76 kHU |
| X-Ray Pre-set Positioning | 48 anatomical positions |
| Dimensions | 290 × 260 × 230 mm |
| Weight | 18.8 Kgs |
Used in outdoor or indoor radiography practices for diagnostic X-ray imaging in the pet clinic, rescue diagnosis, horse-stable or barn or cattle-shed for on-the-go X-ray imaging practices.
