Overview

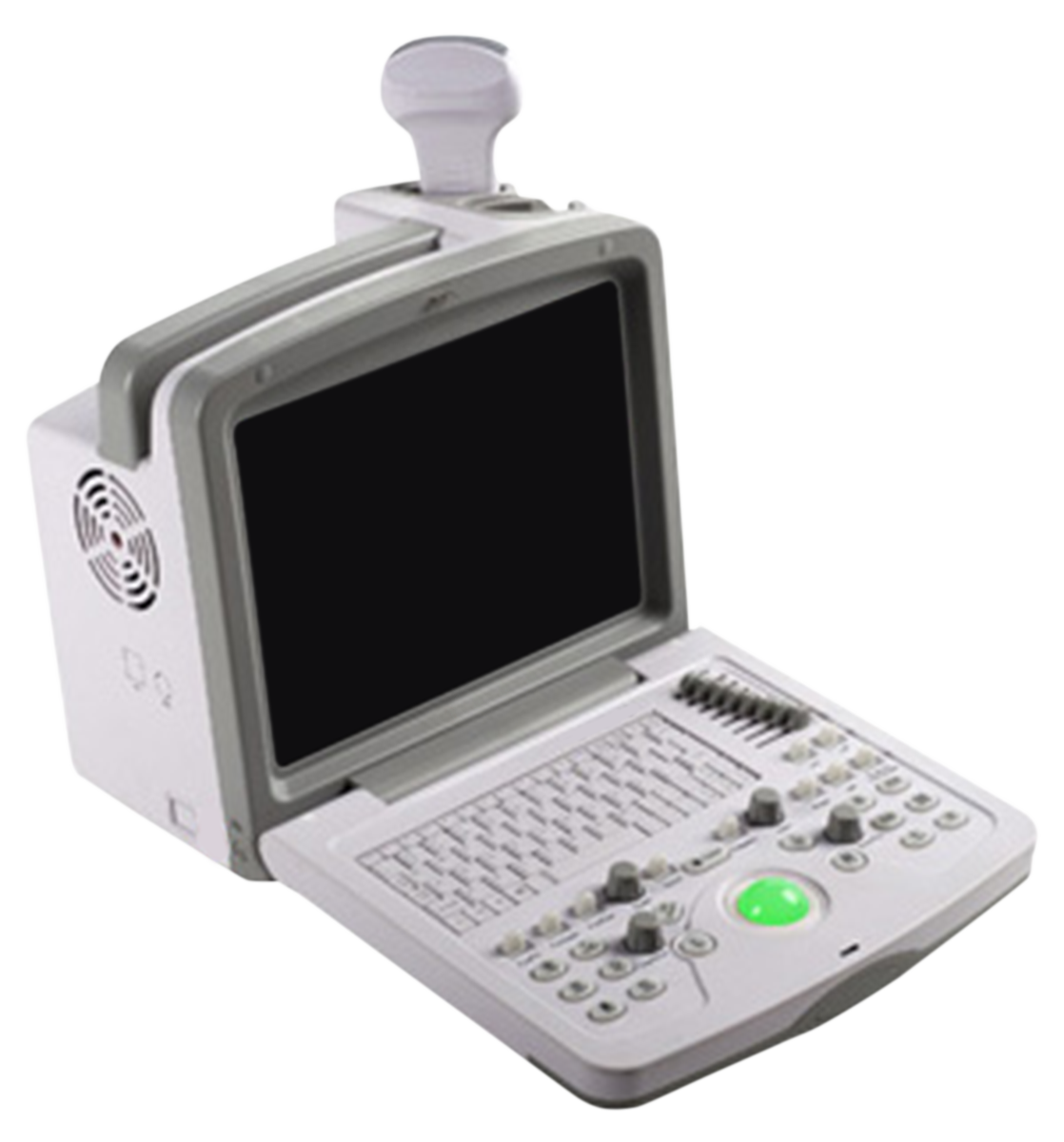

Portable Ultrasound machine KUS-A202 is a compact B/W digital ultrasound imaging modality equipped with 12” LCD screen, 8 pseudo-colour imaging functions and core features such as digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing with DICOM file format feature to ensure efficient measuring and spot-analysis of the body area under study.

Specifications :

Display Size	12-inch LCD screen
Display Depth	40mm to 250 mm
Ultrasound Modes	B, B+B, B+M, M, 4B
TGC	Total gain, 8 segment TGC
Depth Adjustability	16 level of real-time depth adjustments
Probe Scan Methods	Convex, Linear, Micro-convex, Transvaginal and Endo-rectal
Pseudo-colour Imaging	10 pseudo-color options
Cine-loop	≥ 600 frames
Frame Storage	≥ 1000 permanent storage frames, Supports Disk Storage
Hard Disk	≥ 80 G
Body Marks	95 types
Imaging Mode	2D ultrasound imaging
Measurement	Distance, Circumference, Area and Volume
Cardiac Measurement	LV/VF, AV, MV, PV, TV, HR
Obstetric Measurement	BDP, FL, AC, HC, CRL, AD, GS, G.A, LMP, EDD, FW
Image Processing	Pseudo-color, Dynamic range, THI, Image Smoothing, Image Sharpening, Gamma Correction and Histogram based Enhancement.
Output Report	Multiple reporting media formats
Zoom	5 step zoom-in functionality in real-time and freeze-screen
Output Interface	PAL-D Video, RS-232, XGA, USB 2.0, DICOM 3.0
Dimensions	460 x 360 x 430 mm
Weight	9 Kgs

Features :

• - High resolution monitor screen
• - Pseudo-colour imaging
• - Digital beam-forming technology
• - Real-time depth adjustability
• - Patient file management and transfer system

Applications :

Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.

Standard_Accessories :

Sr.	Standard Accessories	Qty
1	3.5 MHz Convex Probe	1

Optional_Accessories :

Sr.	Optional Accessories	Qty
1	7.5 MHz Linear Probe	1
2	5.0 MHz Micro-convex Probe	1
3	6.5 MHz Transvaginal Probe	1
4	7.5 MHz Endorectal Probe	1
