Overview

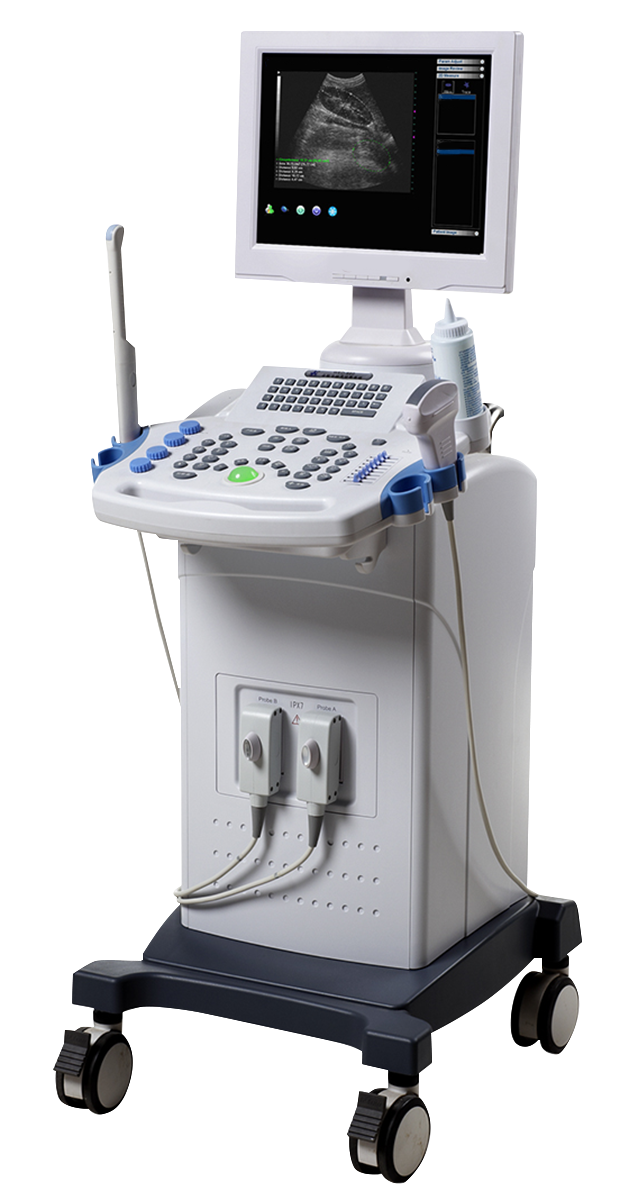

Ultrasound System with Trolley KUS-A101 is a cart-based B/W digital ultrasound imaging system equipped with 15” LCD screen, 10 pseudo-colour imaging functions and core features such as digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing for efficient measuring and spot-analysis of the body area under study.

Specifications :

Display size	15-inch LCD screen
Display depth	250 mm
Display view	≥ 152°
Ultrasound modes	B, B+B, B+M, M, 4B
TGC	Total gain, 8 segment TGC
Depth adjustability	16 level of real-time depth adjustments
Probe scan methods	Convex, Linear, Micro-convex
Pseudo-colour imaging	≥ 10 pseudo-colors
Cine-loop	≥ 600 frames
Frame storage	≥ 1000 permanent storage frames, supports Disk Storage
Image formats	BMP, JPG, DCM, TIF
Hard disk	≥ 80 G
Body marks	95 types
Zoom	16-level zoom, ≥ 5 times local zoom
Output interface	Video, RS-232, XGA, USB 2.0, DICOM 3.0, PS/3
Dimensions	580 x 720 x 1320 mm
Weight	64 Kg

Features :

• - Pseudo-colour imaging
• - Tissue Harmonic Imaging
• - Adjustable puncture guide
• - Suitable for General, Obstetric, Cardiac, Urology and Orthopedics
• - Automated report formation based on diagnostic description
• - Comprehensive patient data management system

Applications :

Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.

Standard_Accessories :

Sr.	Standard Accessories	Qty
1	3.5 MHz Convex Probe	1
2	7.5 MHz Linear Probe	1

Optional_Accessories :

Sr.	Optional Accessories	Qty
1	5.0 MHz Micro-convex Probe	1
2	6.5 MHz Transvaginal Probe	1
3	7.5 MHz Endorectal Probe	1
