Overview

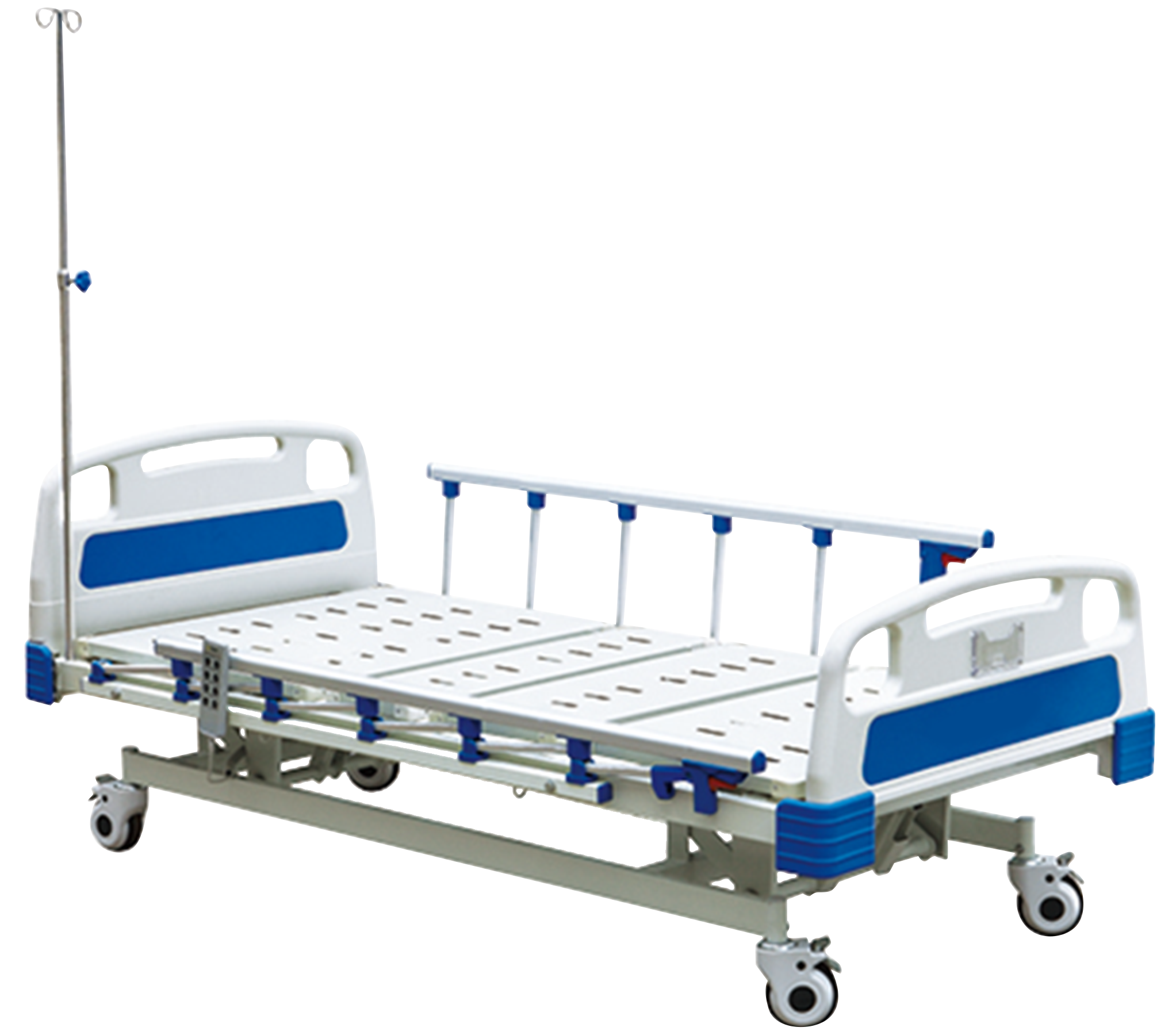

Hospital bed KHB-A206 is a standard mechanical ward bed with ABS side-rails, overload protection hand crank and manual crank spring tensioning system ensures improved comfort and protection at various angular bed configurations for knee-rest and back-rest positions. Equipped with central controlled castors brake system for smooth transition at minimal effort.

Specifications :

Back-rest angle	0° - 80° (±5°)
Knee-rest angle	0° - 40° (±5°)
Construction	Electrostatic powder coated S.S. tube frame with ABS head and foot board
Load capacity	250 Kgs
Other components	Urine hooks, I.V drip, heavy duty castors
Dimensions	2120 x 970 x 700 mm
Weight	79 Kgs

Features :

• - 2 functional bed inclinations (Fowler/PLR variations)
• - Adopts crank tension mechanism
• - Over-loading protection system
• - Steel tube frame with ABS head and foot board

Applications :

Used in hospital wards, primary healthcare facilities and nursing homes with specialized functions dedicated for specific wards such as general ward, nursing, orthopedic, burns, ICU, etc. designed to be adjustable at various inclinations, heights for increased comfort and well-being of the patient.

Standard_Accessories :

Sr.	Standard	Qty
1	I.V. poles	1
2	Urine bag hook	1
