Overview

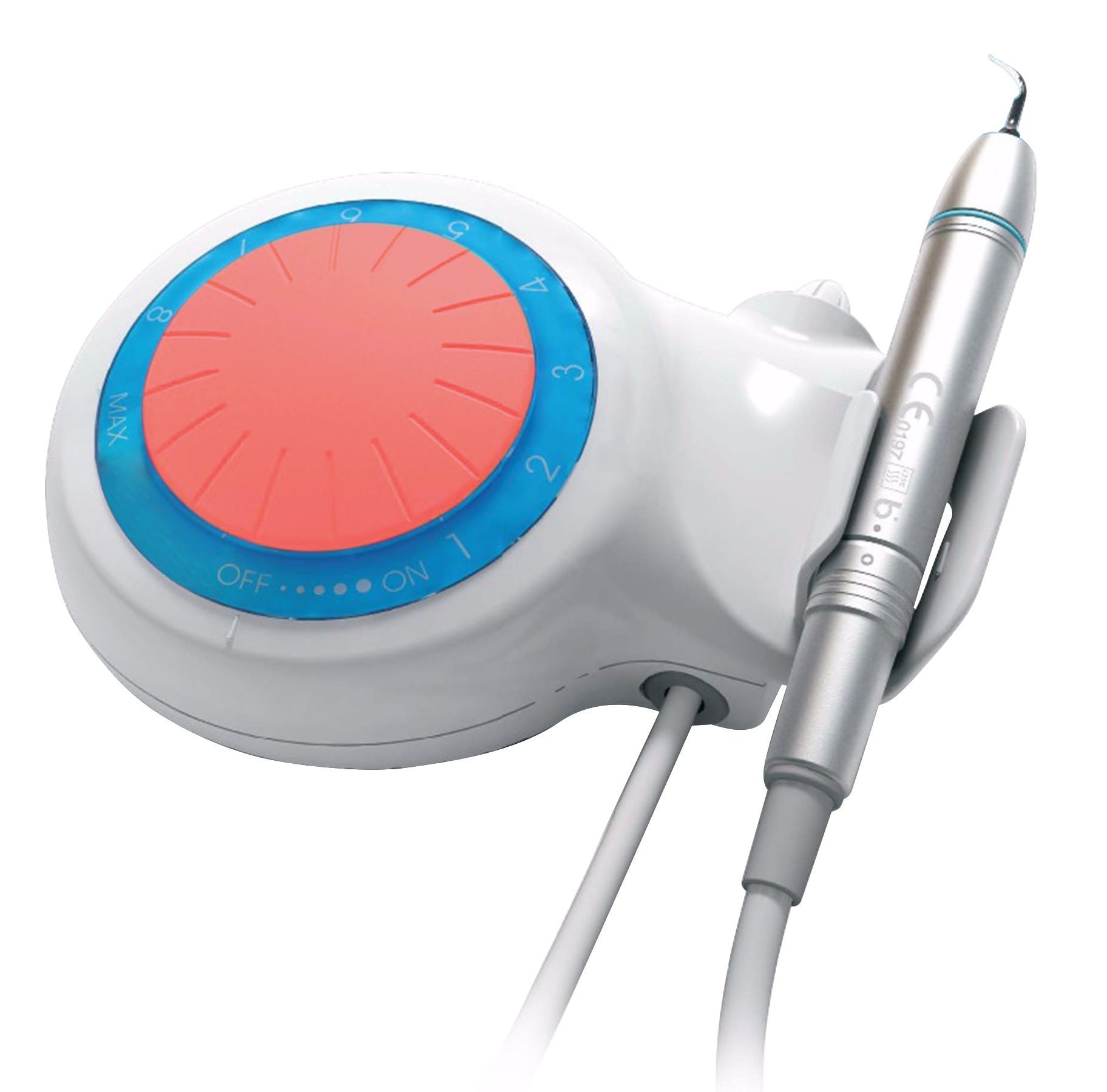

Ultrasonic Scaler KDS-A101 is a digitally controlled light-weight device with automatic frequency tracking for steady operation at accurate frequency standards. Innovative structural design with medical grade plastic construction for better impact resistance, safety and durability. Ergonomic hand-piece with atomized spray design and Ti alloy scaling tip ensures high performance and long lasting fatigue-free operation.

Specifications :

Vibration Generator	Piezo-ceramic generator
Vibration Excursion	≤ 200 μm
Vibration Frequency	28 kHz ± 3 kHz
Modes	Continuous operation
Water Pressure	0.01 MPa – 0.5 MPa (0.1 bar – 5 bar)
Device Classification	Class II
Hand-piece	Ti alloy central-axis with medical grade plastic hand-grip
Hand-piece type	Detachable (T1,T2,T3,T4,TW2)
Operational Life-time	Continuous 1500 hours
Scaling Tips	4 (High hardness alloys)
Hand-piece Cable	Silica gel tube, soft and durable
Power Supply	AC : 100 V – 240 V, 50 / 60Hz DC : 30 V , 50 / 60 Hz
Power Consumption	≤ 40 VA
Output Power	3 W – 20 W
Fuse	1.6 A / 250 V
Operational Temperature	10 °C to 40 °C
Operational Humidity	0% - 80%
Dimensions	254 x 214 x 186 mm
Weight	2.1Kgs

Features :

• - Piezo-electric vibration technology
• - 4 Options for scaling tips
• - Frequency auto-tracking
• - Automatic amplitude compensation
• - Atomized spray design
• - Foot-switch operation

Applications :

Used in dental clinics for dental scaling to remove calculus, plaque and biofilm from tooth surface and underneath the gum line for routine cleaning, gum cleaning or to periodontal diseases.

Standard_Accessories :

Sr.	Standard	Qty
1	Piezoelectric Hand piece	1
2	Foot switch	1
3	Scaling tip	1
4	Water pipe	1
5	Scaling Tip - T1	2
6	Scaling Tip - T2	1
7	Scaling Tip - T3	1
8	Scaling Tip - T4	1
9	Adapter	1
10	Torque wrench	1

Optional_Accessories :

Sr.	Optional Accessories	Qty
1	Hand piece HD-7H	1
